- Z1 900 KZ900 KZ1000 Ignition Coil Set With Caps Oem
Product Description

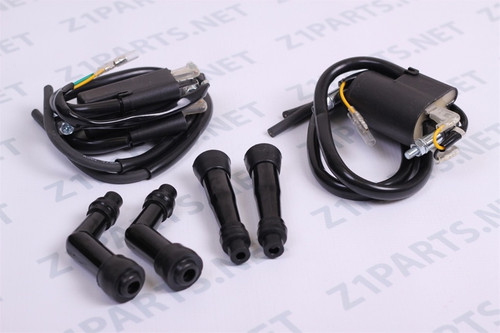

Z1 900, KZ900, KZ1000 Ignition Coils
4 Ohm Coil, Cap, And Wire Set...
Sold As Complete Set.
The Distance Between The Studs Is 3 1/2". Designed For Use As Stock Replacement - Other Coils Or Combination Of Coils That Have At Least 3 Ohms.
Primary Resistance Can Be Used. Since Our Coils Are In the Range Of 4.1 Ohm, There Should Be No Problem Using Our Coils And the DYNA S Electronic Ignition.
LIFE TIME WARRANTY ..(Not a cheap Chinese made)
Replaces OEM#
- 21121-060
- 21121-058
- 21171-1019
- 21121-1003
- 21130-020
- 21121-1013 Ignition Coil # 1 &4
- 21121-1014 Ignition Coil # 2 &3
- 21131-005 Grommet, High Tension
- 21160-1014 Cap Spark Plug
- 21131-006 Grommet,Plug Cap
Fits:
- Z1 (Z1) (1973)
- Z1-A (Z1) (1974)
- Z1-B (Z1) (1975)
- KZ900-A4 (1976)
- KZ900-B1 (Ltd) (1976)
- KZ900-A5 (1977)
- KZ1000 (1977)
- KZ1000 (1978)
- KZ1000-A1 (KZ1000) (1977)
- KZ1000-A2 (KZ1000) (1978)
- KZ1000-A2A (KZ1000) (1978)
- KZ1000-B1 (KZ1000 Ltd) (1977)
- KZ1000-B2 (KZ1000 Ltd) (1978)
- KZ1000-C1 (Police 1000) (1978)
- KZ1000-C1A (Police 1000) (1978)
- KZ1000-D1 (Z1R) (1978) * You May Have To Remove the Ballast Resistor
- KZ1000-D3 (Z1R) (1980) * You May Have To Remove the Ballast Resistor
This Set Will Fit Many Other Models Between 1973 -80 Besides Z1900. Distance Between the Mounting Studs Is 3 1/2 Inches.
This Set Will Fit Many Other Models Between 1973 -80. Distance Between the Mounting Studs Is 3 1/2 Inches. If Your Bike Has Electronic Ignition And Or the Ballast Resistor Please Read the Notes Below. Http://Www.Kawariders.Com.Au/ArchIVe/Index.Php/T-19078.Html the Forum Is Discussing the 1980 MKII Very Similar To Other KZ1000 Models That Have Electrical Ignition Set Up. Generally, the Ballast Resistor Is there So there Would Be Less Voltage Going Into the Coil. Ballast Resistor Should Have Somewhere Around 1.5-1.9 Ohm (According To the Service Manual) And the Coil ’S Primary Wire Should Have the Resistance Of 1.2-1.9 Ohm (Also, According To the Service Manual). So the Total Electrical Resistance Will Be Some Where Around 2.7-3.8 Ohm. In Order To Use Our Coils For This Case, the Customer Will Have To Remove the Ballast Resistor Since the Coil Already Have the Primary Resistance Of 3 Ohm.
PREMIUM QUALITY.
